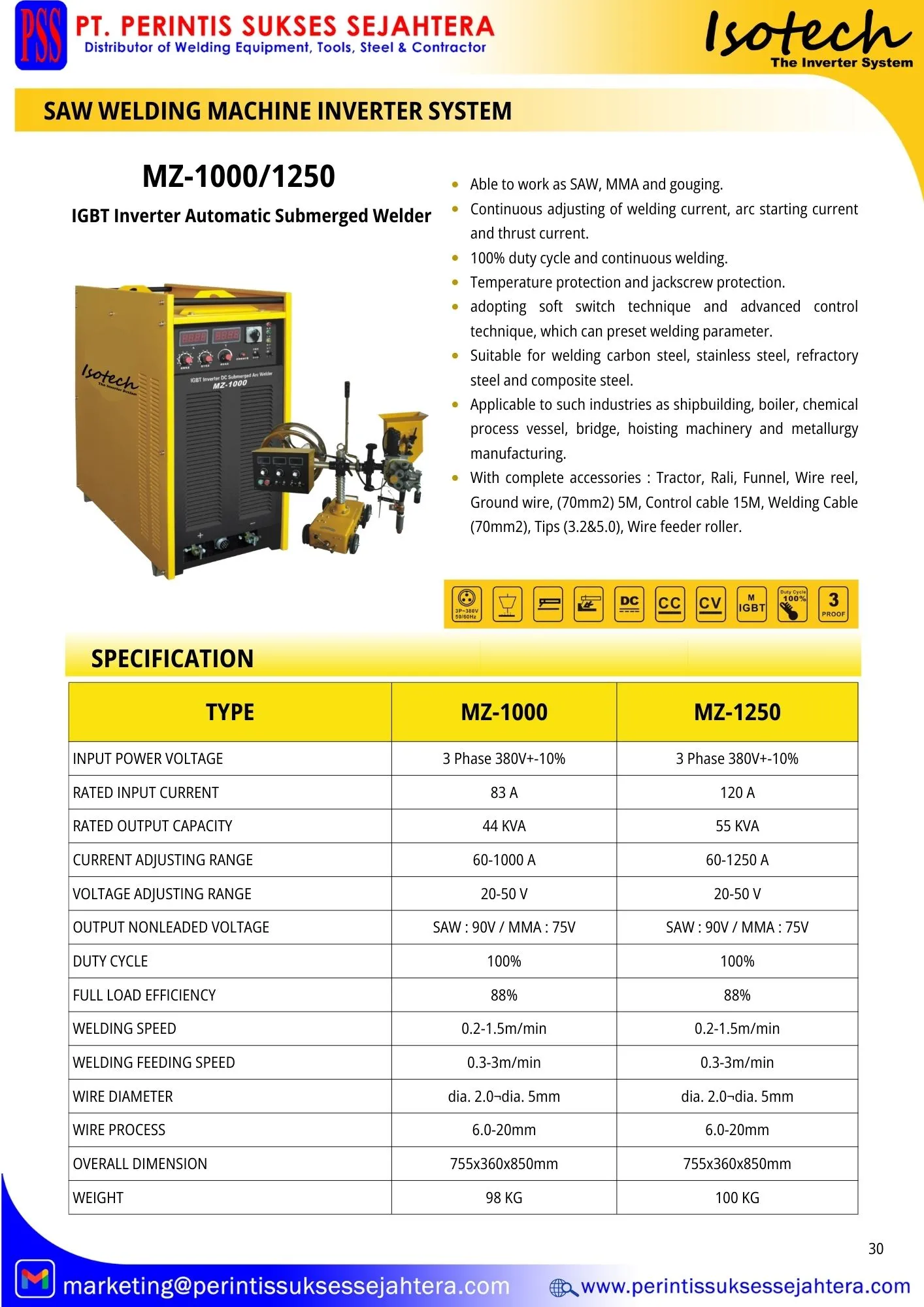

MZ-1000/1250

Able to work as SAW, MMA and gouging. Continuous adjusting of welding current, arc starting current and thrust current. 100% duty cycle and continuous welding. Temperature protection and jackscrew protection. adopting soft switch technique and advanced control technique, which can preset welding parameter. Suitable for welding carbon steel, stainless steel, refractory steel and composite steel. Applicable to such industries as shipbuilding, boiler, chemical process vessel, bridge, hoisting machinery and metallurgy manufacturing. With complete accessories : Tractor, Rali, Funnel, Wire reel, Ground wire, (70mm2) 5M, Control cable 15M, Welding Cable (70mm2), Tips (3.2&5.0), Wire feeder roller.

TYPEMZ-1000
INPUT POWER VOLTAGE3 Phase 380V+-10%
RATED INPUT CURRENT83 A
RATED OUTPUT CAPACITY44 KVA
CURRENT ADJUSTING RANGE60-1000 A
VOLTAGE ADJUSTING RANGE20-50 V
OUTPUT NONLEADED VOLTAGESAW : 90V / MMA : 75V
DUTY CYCLE100%
FULL LOAD EFFICIENCY88%
WELDING SPEED0.2-1.5m/min
WELDING FEEDING SPEED0.3-3m/min
WIRE DIAMETERdia. 2.0¬dia. 5mm
WIRE PROCESS6.0-20mm
OVERALL DIMENSION755x360x850mm
WEIGHT98 KG
TYPEMZ-1250
INPUT POWER VOLTAGE3 Phase 380V+-10%
RATED INPUT CURRENT120 A
RATED OUTPUT CAPACITY55 KVA
CURRENT ADJUSTING RANGE60-1250 A
VOLTAGE ADJUSTING RANGE20-50 V
OUTPUT NONLEADED VOLTAGESAW : 90V / MMA : 75V
DUTY CYCLE100%
FULL LOAD EFFICIENCY88%
WELDING SPEED0.2-1.5m/min
WELDING FEEDING SPEED0.3-3m/min
WIRE DIAMETERdia. 2.0¬dia. 5mm
WIRE PROCESS6.0-20mm
OVERALL DIMENSION755x360x850mm
WEIGHT100 KG
